4 Pin Three Phase Adapter Leads

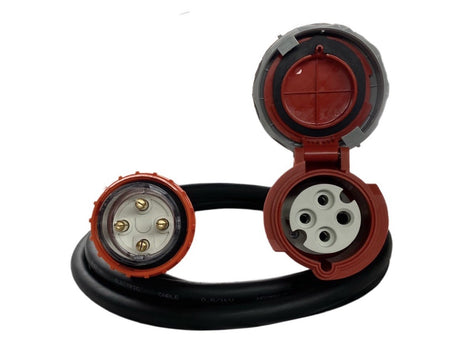

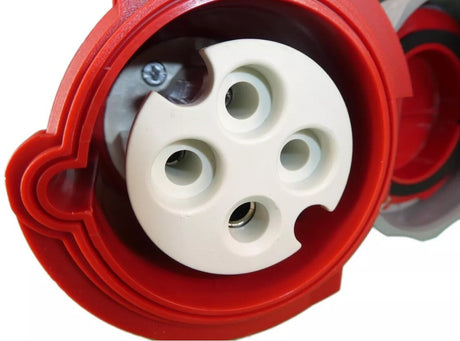

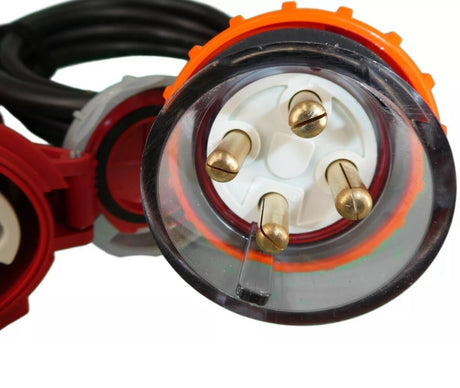

Reefer Adapter Lead 4 Pin 32 Amp Aust. Plug to 4 Pin 32 Amp Reefer Socket 1m

In Stock

Regular price $144.00
$130.91 + GST

View details
Adapter CEEform 32 Amp 4 Pin to 32 Amp 4 pin Three Phase Extension Lead

In Stock

Regular price From $159.00
$144.55 + GST

View details
Adapter 20 Amp 4 Pin to CEEform 16 Amp 4 pin Three Phase Extension Lead

In Stock

Regular price From $159.00
$144.55 + GST

View details

4 Pin Three Phase Adapter Leads FAQs

Resource Electrical’s Collection of 4 Pin Three Phase Adapter Leads

In applications where reliable three-phase power is critical, Resource Electrical’s range of 4 Pin Three Phase Adapter Leads provides a professional, compliant solution for bridging incompatible plug and socket configurations. These adapters are purpose-designed to facilitate safe power connections between standard Australian 4-pin three-phase outlets and specialised connectors such as marine-style or refrigerated container (Reefer) sockets, without the need for permanent modifications or rewiring.

Engineered for demanding industrial and commercial environments, these adapter leads are commonly used across cold storage facilities, ports and shipping yards, construction sites, logistics hubs, and commercial kitchens—anywhere dependable three-phase power distribution is essential. Each lead is assembled in Australia using heavy-duty cabling and high-quality, standards-compliant components selected to withstand mechanical stress, environmental exposure, and continuous use.

Backed by Resource Electrical’s team of experienced, licensed electricians, every adapter lead is built with safety, compliance, and longevity in mind. Custom configurations, cable lengths, and connector options are available to ensure the final product is precisely matched to your application, delivering a standards-ready, job-specific solution you can rely on with confidence.

4 pin three phase adapter leads are used to safely interface between different three-phase plug and socket formats that share the same electrical characteristics but differ in physical configuration. They are most commonly found in industrial, marine, logistics, and temporary power applications, where Australian-standard 4 pin outlets must connect to Reefer-style or other specialised three-phase connectors used on refrigerated containers and equipment.

Yes. Many 4 pin adapter leads are manufactured using heavy-duty rubber cable and IP-rated industrial connectors designed to withstand moisture, dust, and harsh environmental conditions. This makes them well suited for outdoor use, port operations, marine installations, and exposed work sites. If your application requires a specific ingress protection rating, our team can advise on the most appropriate configuration.

No. A standard 4 pin three-phase configuration consists of three active phases and an earth connection only. A neutral conductor is not included and is unnecessary for equipment designed for balanced three-phase loads. If your equipment requires a neutral, a 5 pin three-phase connection should be used instead.

Absolutely. Resource Electrical specialises in custom-built adapter leads and can manufacture your 4 pin adapter lead to any required length. Cable selection can also be tailored to your environment, including options for enhanced flexibility, oil and chemical resistance, UV stability, or extra-heavy-duty site use.

Reefer connectors are purpose-built for refrigerated shipping containers and marine environments and often feature a different pin layout, locking method, or housing design compared to Australian industrial 4 pin connectors. While both carry three-phase power with earth, they are not directly interchangeable. Adapter leads are engineered to safely bridge this difference without compromising electrical integrity or compliance.

Yes. All 4 pin three phase adapter leads supplied by Resource Electrical are constructed using components that meet applicable Australian electrical safety standards. Each lead is assembled, inspected, and electrically tested by licensed electricians to ensure suitability for high-load, high-demand applications.

Yes. These adapter leads are specifically designed for powering refrigerated containers, allowing seamless connection between Reefer-style plugs and Australian 32A three-phase outlets. They are widely used in logistics centres, ports, transport depots, and event sites requiring temporary cold storage solutions.
