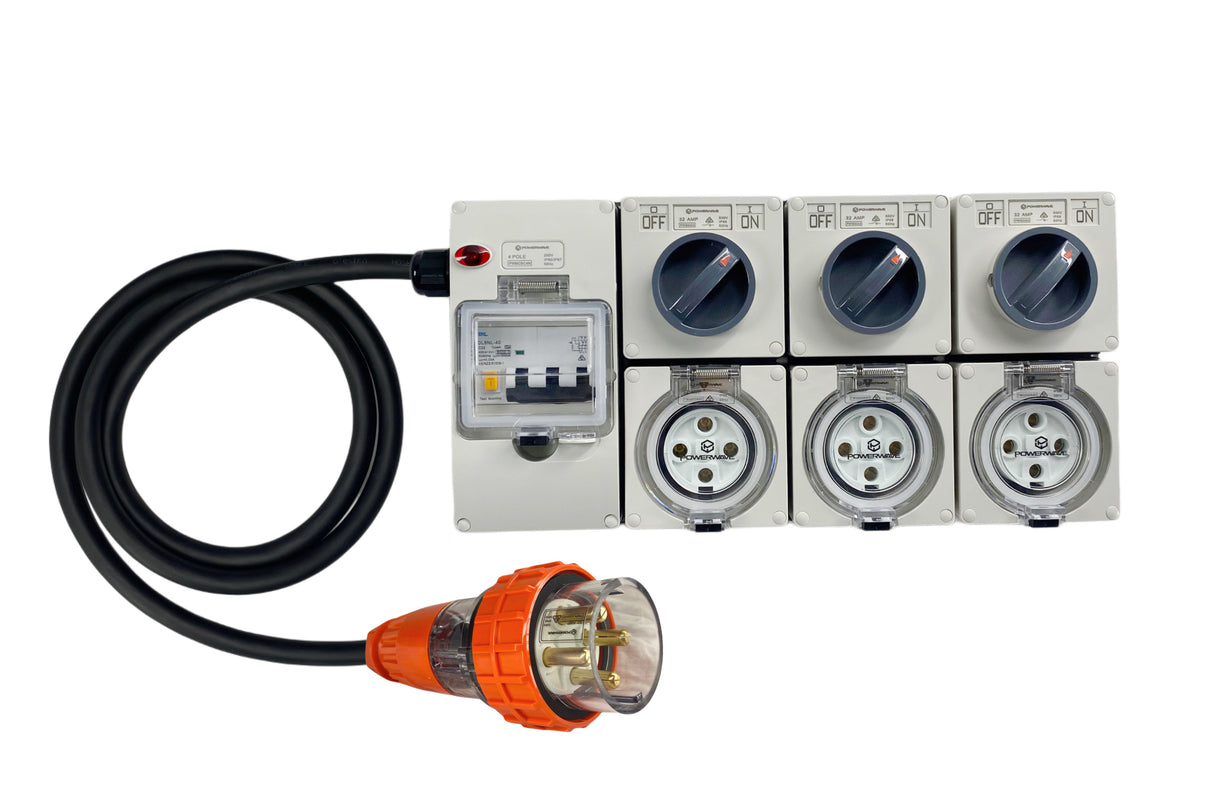

Power Board 32 Amp 4 Pin Three Phase to 3 x 32 Amp 4 pin Three Phase outlets

Expertly assembled, tested, and tagged by licensed electricians in Australia, this high-quality power board features a 4 Pin 32A Three Phase input to 3 x 4 Pin 32A Three Phase outlets, providing RCBO protection for enhanced safety and reliability. Designed with three switched outlets and a durable 2, 5 or 10 metre lead, it ensures secure and efficient power distribution for a range of applications.

Warranty:

• 24-month warranty on all products (excludes misuse).

Assembly and Testing:

• All Resource Electrical Power Boards are assembled and tested in-house by our licensed electricians.

Lead Time:

• Standard: Dispatched within 1 day of order. We will notify you if it falls outside this timeframe.

Configuration Options:

• 3 Socket Option:
• Outlets: 3 x 4 Pin 32 Amp Three Phase 415 Volt

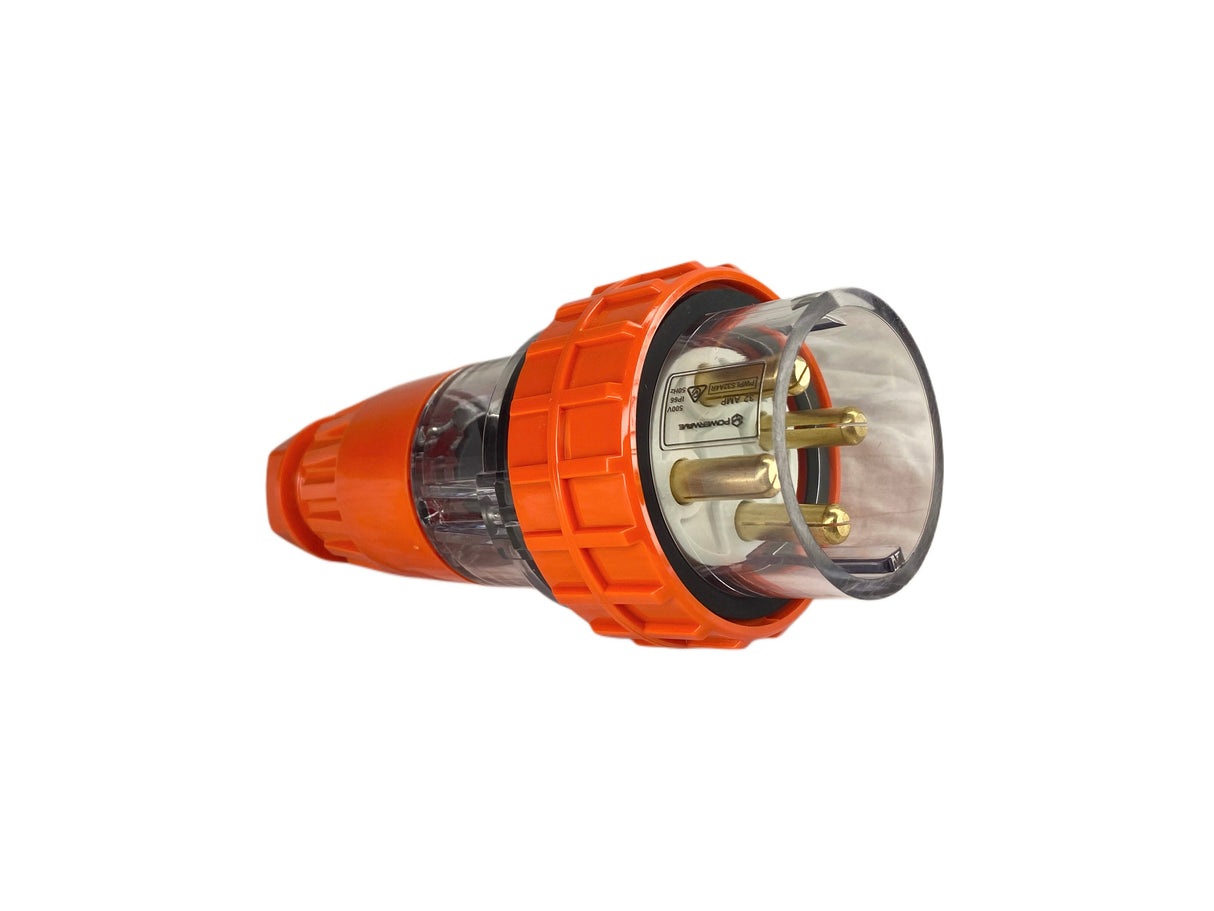

• Supply: 4 Pin 32 Amp Three Phase
• RCBO Protection: 1 x 4-Pole NLS 32 Amp 6kA
• Enclosure: 8 Module Base (approx. 400w x 200h x 100d mm)
• Plug Lead:
• Four Core
• CSA: 4mm²
• NST: 2.1mm
• Max DC Resistance @20°C: 5.09 ohms/KM
• NOD: 14.9mm
• Amperage Rating: 36A (as per AS/NZS 3008.1.1.2009 Table 14)
• Weight: 421 Kg/Km

Lead Length:

• Choose from a range of lead (cable) lengths to suit your needs.

Important Note:

• To avoid extra costs and fees associated with ordering the wrong product, please confirm the compatibility of the plug and sockets on the power board (e.g., 5 Pin 32A, 5 Pin 20A, 5 Pin 10A, etc.) before placing your order. If uncertain, contact us for assistance.

Switch Gear:

• Brand: Powerwave
• Specifications:
• Series 56 style IP66 Rated
• Compatible with all leading Australian switch gear
• PCA18 virgin grade plastics (no regrind)
• 304 Stainless Steel springs and mounting screws
• Brass internal components contain over 85% copper
• Australian/NZ Approval Certificates
• Interchangeable with other major brands

Note:

• Automatic Switched sockets are used for Single Phase 3 Pin 10A and 15A sockets (no separate switch required). All other sockets contain a surface switch in the form of a combined socket & switch module.

Cable Properties:

• Leads use Multi Core Rubber Insulated and Sheathed Flexible Power Cable insulated with Ethylene-propylene rubber (EPR) R-EP-90 90°C Conductor.
• Conductors are Class 5 tinned copper according to AS/NZS 1125, IEC 60228.
• H07 Grade Rubber Flex cable has a submersible rating of 200m (suitable for fresh water, salt water, sewage/contaminated water), is UV sunlight/oil/weather resistant, and flame retardant to IEC 0332-1-2:2004, EN60332-1-2-2004.
• Outer jacket (black colour) made of Chlorinated Polyethylene, CPE rubber compound.
• Rated Voltage: 0.6/1kV.

General Specifications (Applicable to All Configurations)

Warranty
24 months (excluding misuse)

Assembly/Testing
Assembled and tested in-house by licensed electricians
