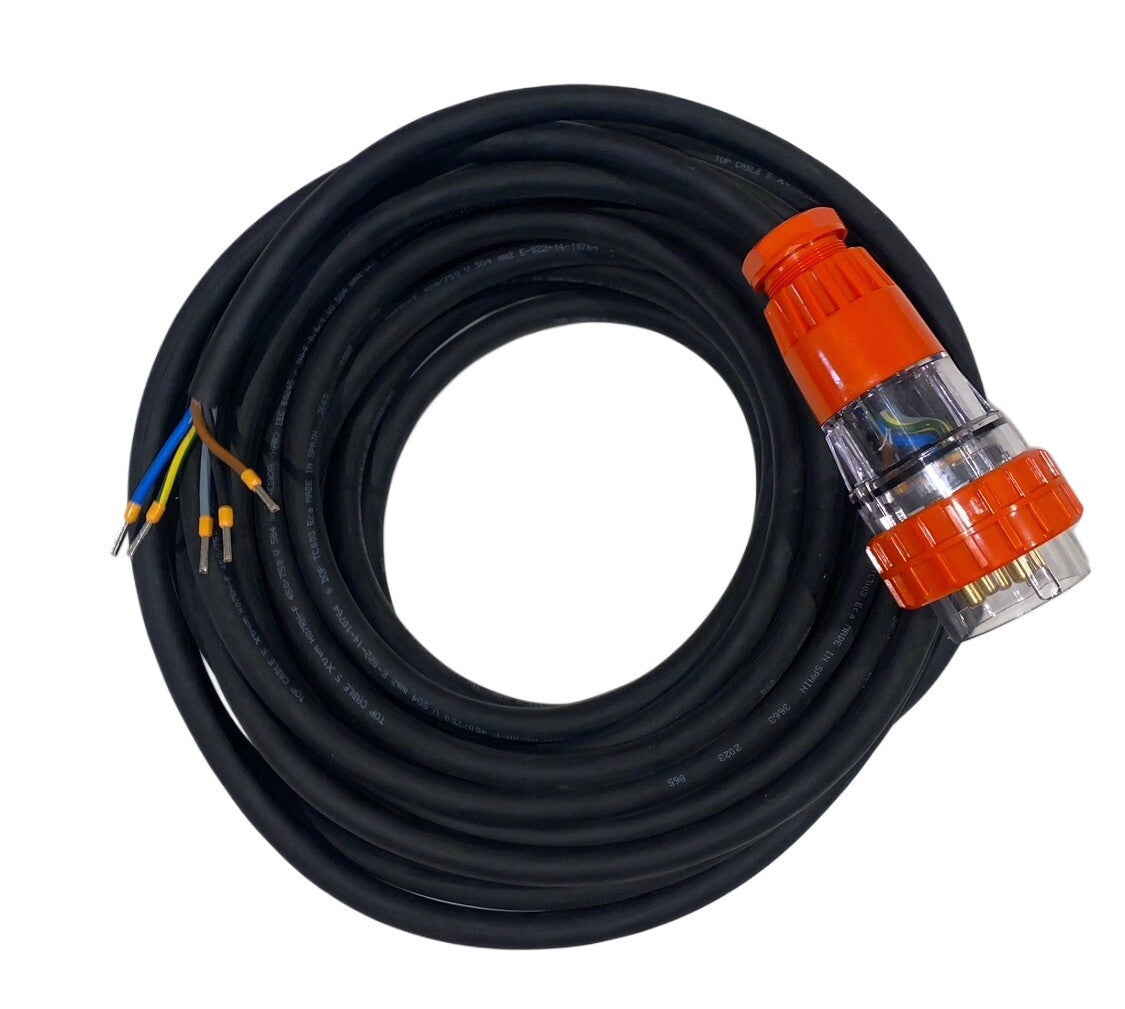

20 Amp 20m appliance Mains Lead, 3 Phase, 5 pin, 415V, 20mt, Plug and H07 Cable

THIS ITEM IS NOT AN EXTENSION LEAD.

APPLIANCE LEADS ARE DESIGNED TO BE CONNECTED DIRECTLY TO EQUIPMENT TO BE PLUGGED INTO AN OUTLET.

* 5 Pin 20 Amp 3 Phase Electrical Appliance Lead 20m Long

* Appliance Lead for replacement of damaged leads on portable equipment or Machinery to a 4 or 5 Pin 20 Amp Three Phase Outlet.

* Cable Specifications - CSA 2.5mm2

* Typically used at events & temporary cabling, fairgrounds, sporting venues, portable equipment including concrete cutting and grinding machines, construction site leads, wet or oily environments, mine sites and quarries, submersible pumps, to name just a few applications.

* Made of H07 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant

* Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228

* Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor

* Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.

* Rated Voltage - 0.6/1kV

* The cable is UV Sunlight and weather resistant. Flame retardant to IEC 0332-1-2:2004,EN60332-1-2-2004.

* All Plugs and Sockets are IP66 Rated and are compatible with all leading Australian switch gear.

* All Plugs and Sockets are Quality Gen3 Australian Brand (No Second Rate Rubbish)

* A 45 Degree Angle Plug can be fitted instead as a special order with an additional cost. Please indicate if you require such a plug when ordering.

* Cable Length - 20m
