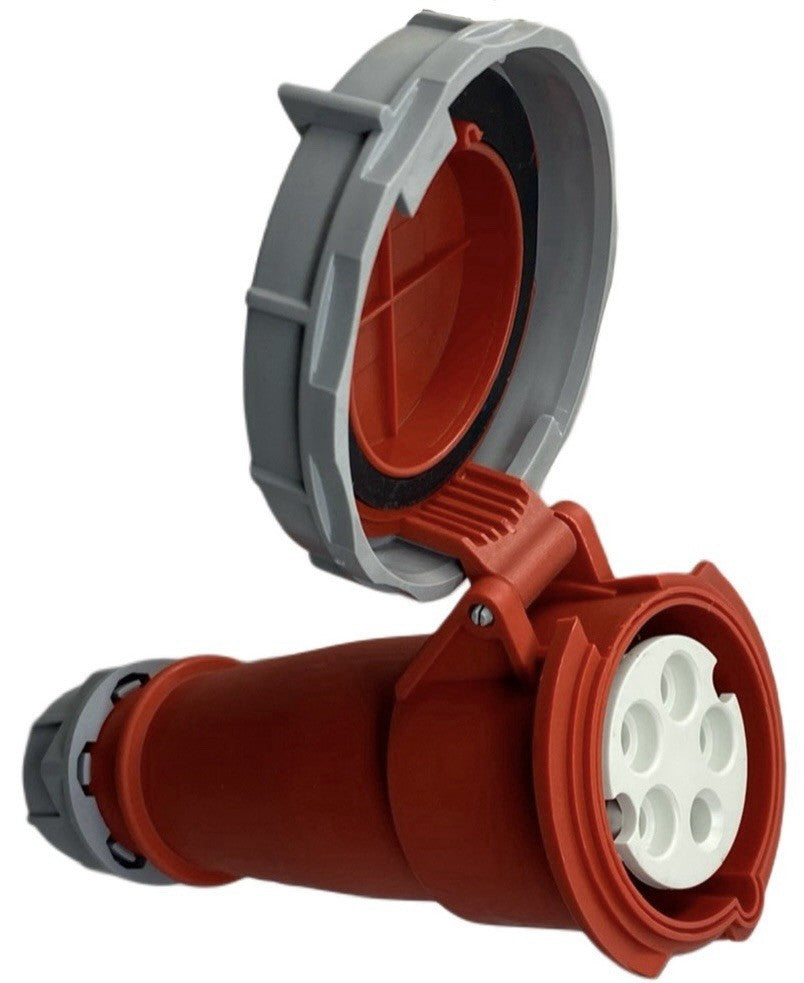

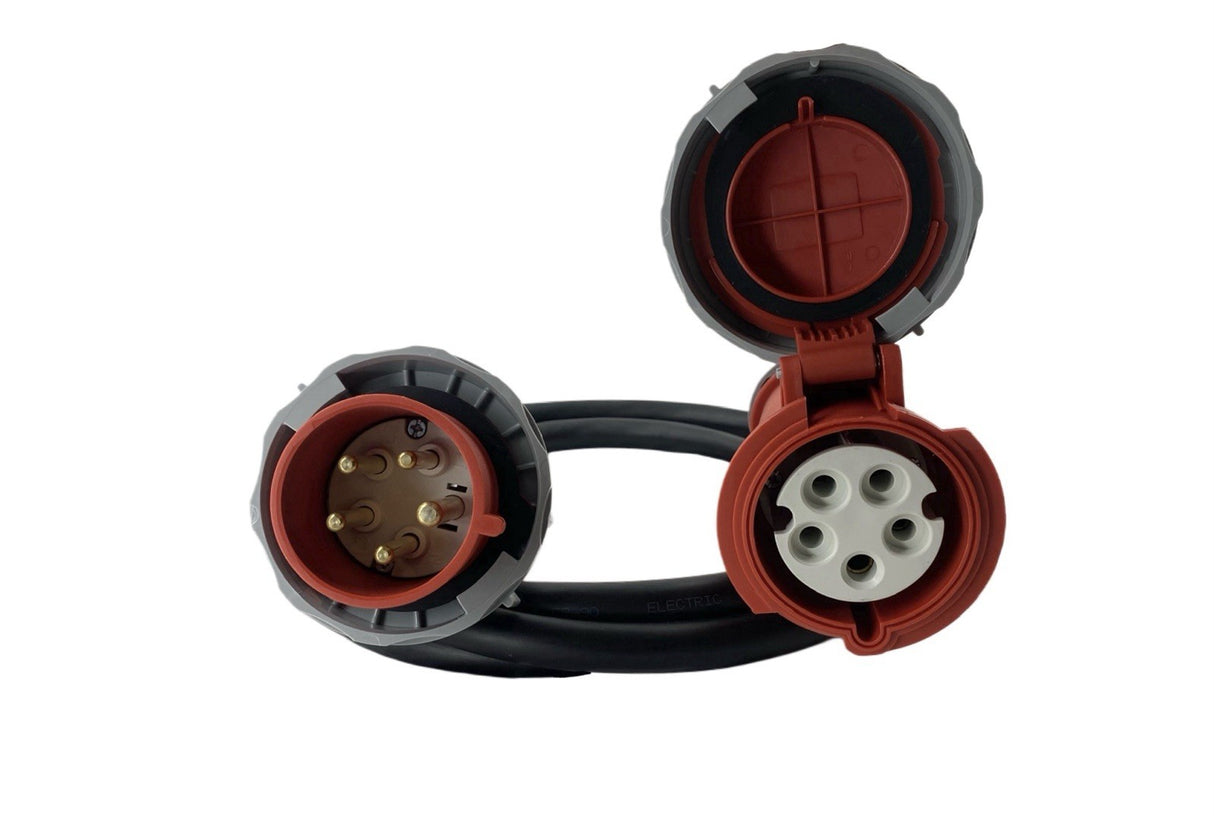

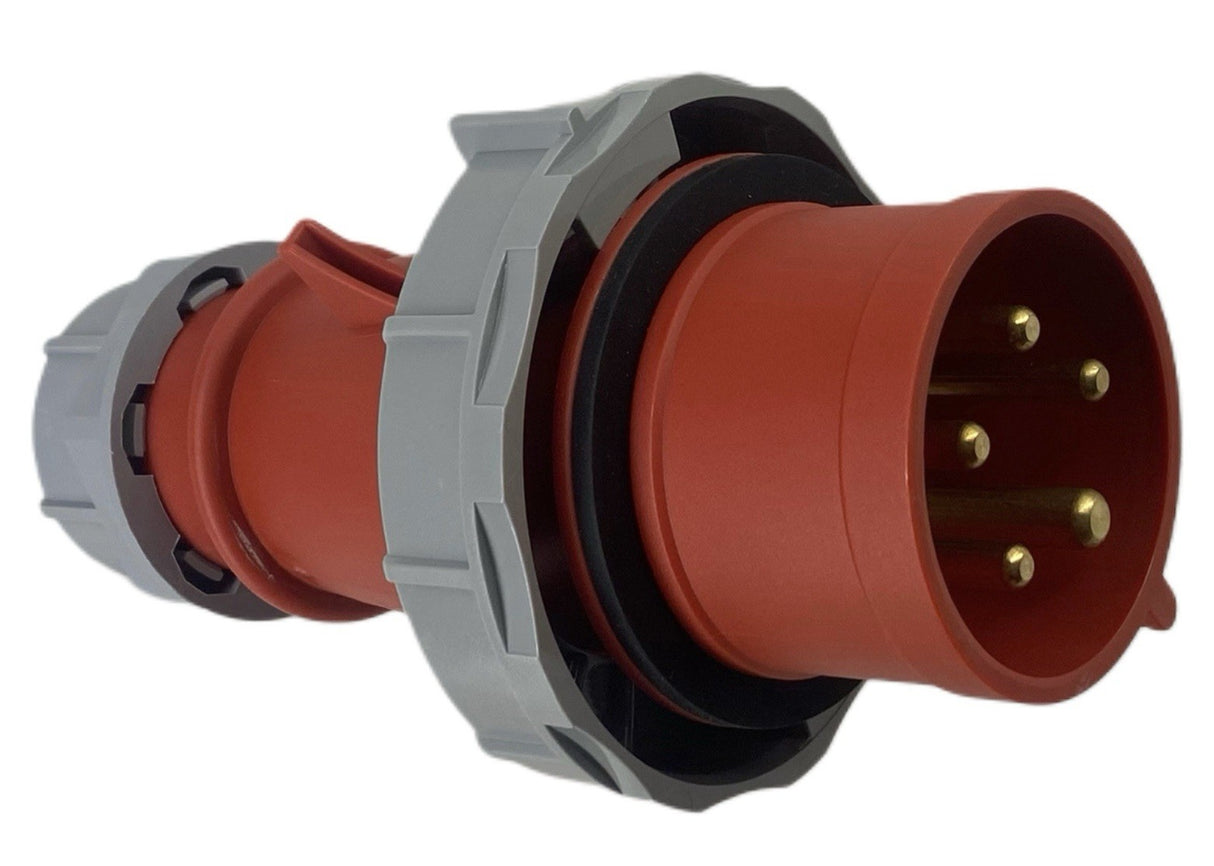

32 Amp 5 Pin Three Phase 415V, CEEform Extension Lead

Quality extension lead, expertly assembled and tested by licensed electricians in Australia. Featuring a CEEform 5 Pin, 32 Amp, Three phase plug and socket with Heavy Duty 4mm cable 415V

Product Overview

• Type: 5 Pin, 32 Amp, 415V, CEEform Extension Lead

• Length: 2, 5, 10, 15, 20, 25, 30, 40, 50, or 60 Metres

• Thickness: Heavy duty, 4mm² cable

• Warranty: 24 months (excludes misuse)

• Quality Assurance: Assembled and tested in-house by licensed electricians at Resource Electrical

Cable Specifications

Each cable type is designed to support different load capacities:

CSA (mm²): 4mm²

Cores: 5

NST

(mm): 2.2mm

MaxR

(Ω/KM @20°C): 5.09

NOD

(mm): 15.9mm

Amperage: 36A

Common Applications

Ideal for use in:

✔️ Events & temporary cabling setups

✔️ Fairgrounds and sporting venues

✔️ Generators, motors, compressors

✔️ Construction projects

✔️ Portable equipment (e.g., concrete cutting tools)

Important Ordering Information

To prevent unnecessary costs or returns, please verify plug and socket compatibility before ordering:

• Check: 5-Pin 32A, 5-Pin 20A, 5-Pin 10A, etc.

• Need Assistance? Contact us—we’re happy to help!

Cable Properties

• Insulation: Multi-core rubber-insulated, sheathed flexible power cable with Ethylene-Propylene Rubber (EPR) R-EP-90 (90°C Rated)

• Conductors: Class 5 tinned copper (AS/NZS 1125, IEC 60228)

• Durability & Resistance:

o Submersible Rating: 200m (suitable for fresh water, saltwater, sewage/contaminated water)

o Weatherproofing: UV-resistant, oil-resistant, flame retardant (IEC 0332-1-2:2004, EN60332-1-2-2004)

• Outer Jacket: Chlorinated Polyethylene (CPE) rubber compound (Black)

• Rated Voltage: 0.6/1kV

Extension Lead Specifications

Warranty & Quality Assurance

• Warranty: 24 months (excludes misuse)

• Assembly & Testing: Assembled and tested in-house by licensed electricians

General Specifications

• Plug/Socket Type: 5 Pin CEEform

• Amperage: 32 Amp

• Voltage: 415V
