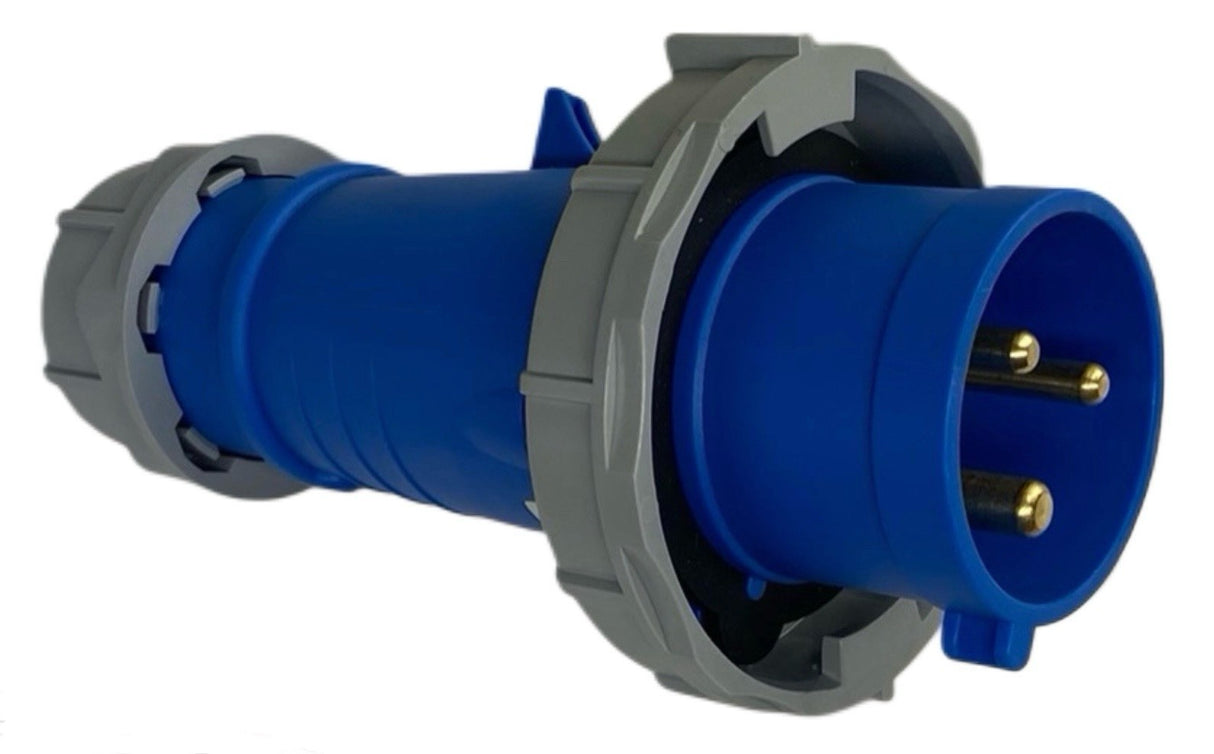

Appliance Lead CEEform 32 Amp 3 Pin Single Phase Plug with Bootlace Pins/or Lugs

Quality appliance lead, expertly assembled and tested by licensed electricians in Australia. Featuring a CEEform 3 Pin, 32 Amp, single phase straight plug with bootlace pins or Lugs.

 Key Features:

High-quality appliance lead, assembled and tested by licensed electricians in Australia.

Warranty: 24 months (excludes misuse).

Installation Requirement: Must be installed and tagged by a legally qualified professional.

Purpose: This is not an extension lead. It is designed for permanent connection to an appliance, such as replacing an existing lead.

Quality Assurance: All Resource Electrical Appliance Leads are assembled in-house by our licensed electricians.

Lead Time:

Standard: Dispatched within 1 business day. We will notify you if delays occur.

Configuration Options:

Plug Type: Industrial Australian Electrical Straight Extension Plug

Lead Length: Available from 1 metre to 20 metres.

Wire Ends:

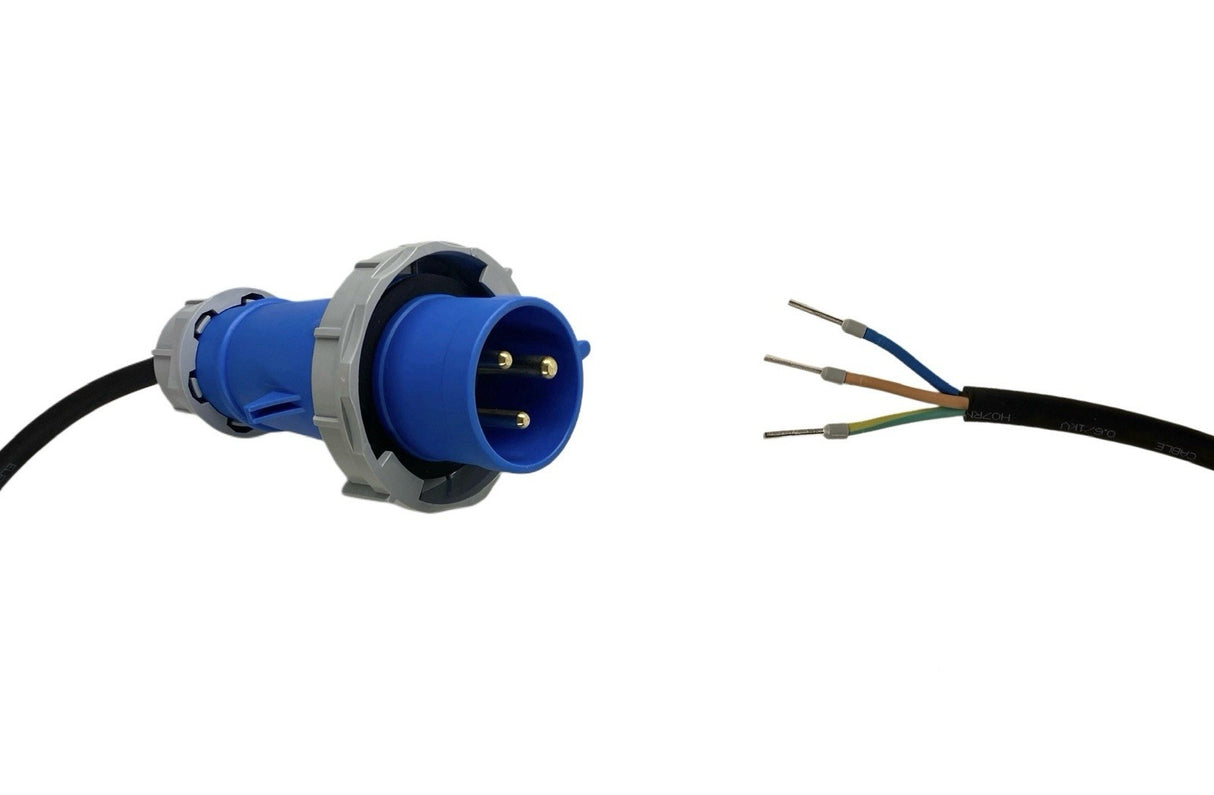

Standard termination with Bootlace Pins.

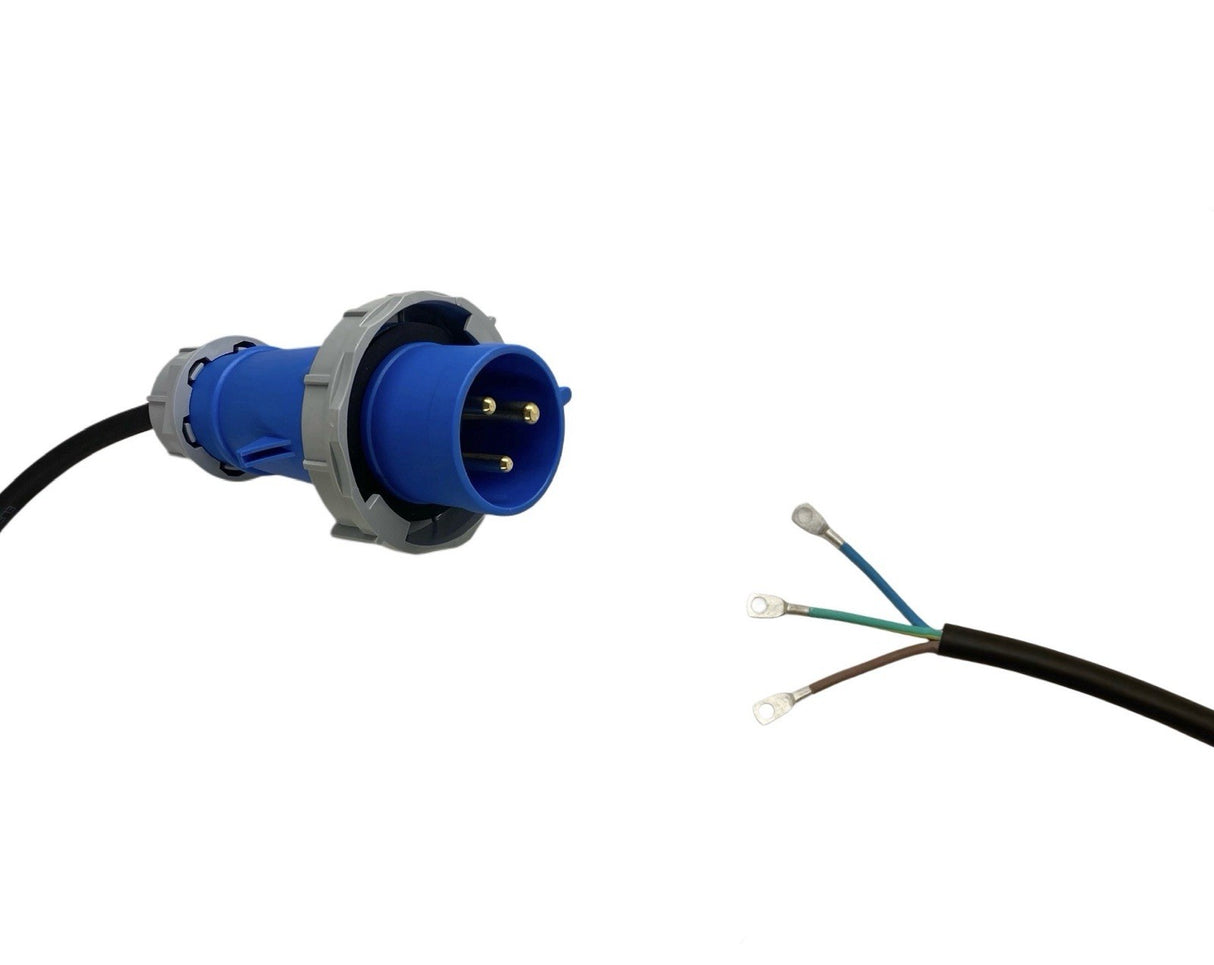

Some leads offer Tinned Copper Tube Crimp Lugs with various stud hole sizes (availability depends on the product).

Heat shrink is applied for wire and lug protection.

IMPORTANT:

To avoid extra costs from ordering the wrong product, confirm plug and lead compatibility before purchasing (e.g., 5 Pin 32A, 5 Pin 20A, 5 Pin 10A). If unsure, contact us—we’re happy to assist!

Switch Gear

Specifications:

Powerwave Industrial Switch Gear and power board module bases are Series 56 style, IP66-rated, sourced from high-quality Australian brands.

Plastics: PCA18 virgin grade (no regrind).

Hardware: 304 Stainless Steel Springs & Mounting Screws.

Brass Components: >85% copper content.

Compliance: All Powerwave products hold Australian/NZ Approval Certificates.

Interchangeability: Fully compatible with other major brands.

Cable

Specifications:

3 Core Cable:

CSA: 4mm²

NST: 1.9mm

Max DC Resistance (@20°C): 5.09 ohms/km

Nominal Diameter: 13.4mm

Amperage Rating: 36A (per AS/NZS 3008.1.1.2009 Table 14)

Weight: 299kg/km

Cable Type: Multi-core rubber-insulated and sheathed flexible power cable with Ethylene-Propylene Rubber (EPR) R-EP-90 90°C conductor.

Conductor Standard: Class 5 tinned copper (AS/NZS 1125, IEC 60228).

Durability:

Submersible rating: 200m (suitable for freshwater, saltwater, and contaminated water).

UV, oil, and weather-resistant.

Flame retardant (IEC 0332-1-2:2004, EN60332-1-2-2004).

Outer Jacket: Chlorinated Polyethylene (CPE rubber compound, black).

Rated Voltage: 0.6/1kV.

Appliance

Lead Specifications

Warranty & Compliance

Warranty: 24 months (excludes misuse)

Assembly & Testing: Assembled and tested in-house by licensed electricians

Installation & Tagging: Must be performed by a legally qualified professional

Type: Not an extension lead – designed for permanent appliance connection

General

Specifications

Plug Type: 3 Pin, 32 Amp, CEEform

Phase: Single Phase

Configuration Options

Plug Options:

Standard: Industrial Australian Electrical Extension Plug

Lead Lengths (m): 1 – 20

Wire End Options:

Bootlace Pins: Terminate all wires

Lugs & Crimps:

Tinned Copper Tube Crimp Lugs (hole/stud size varies)

Heat shrink protection applied
