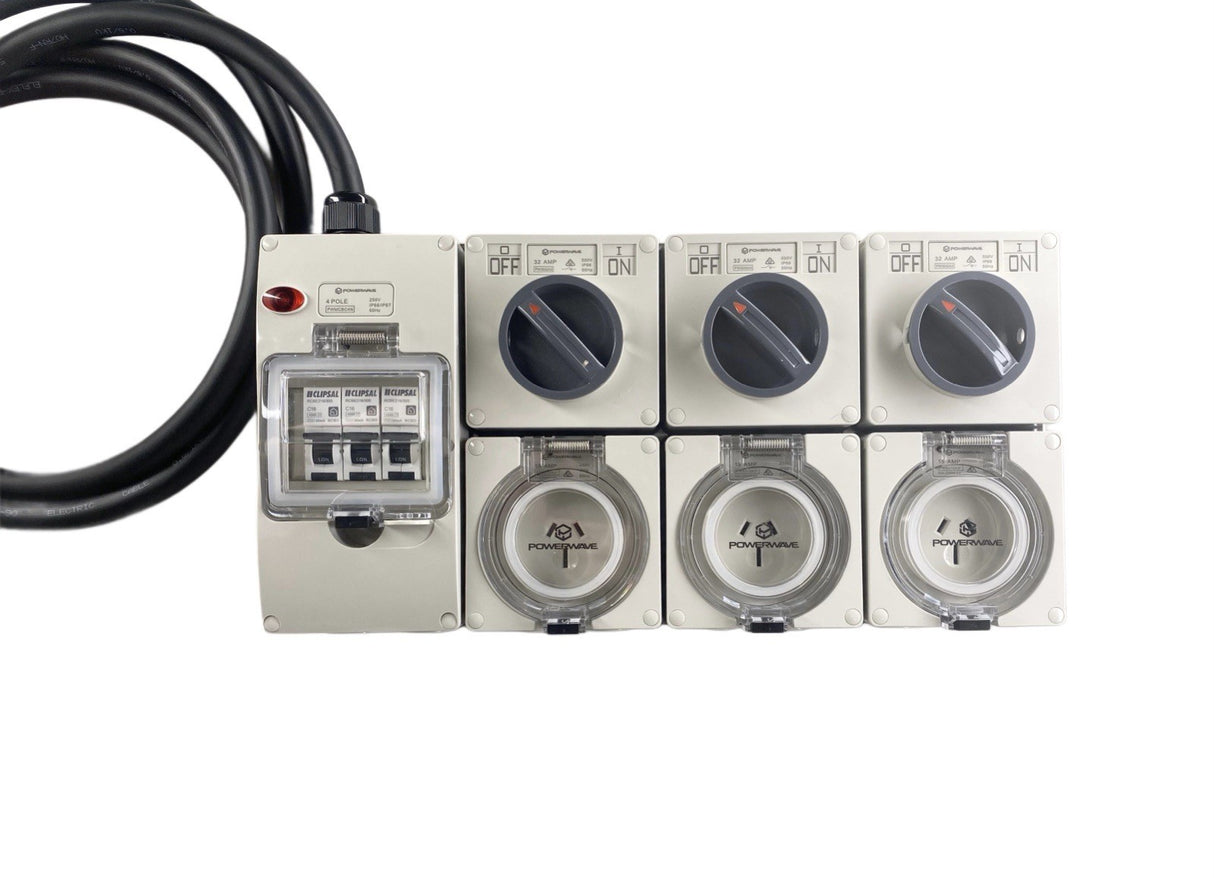

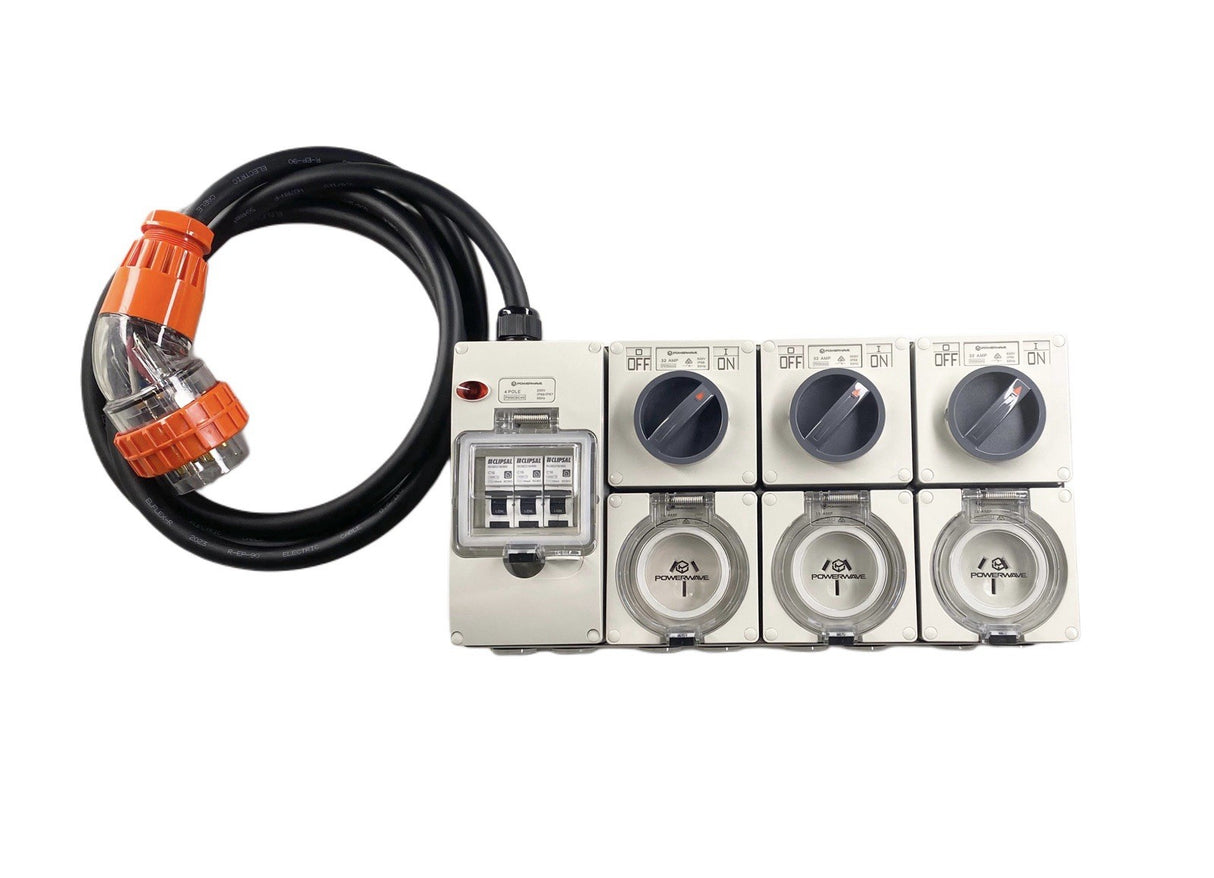

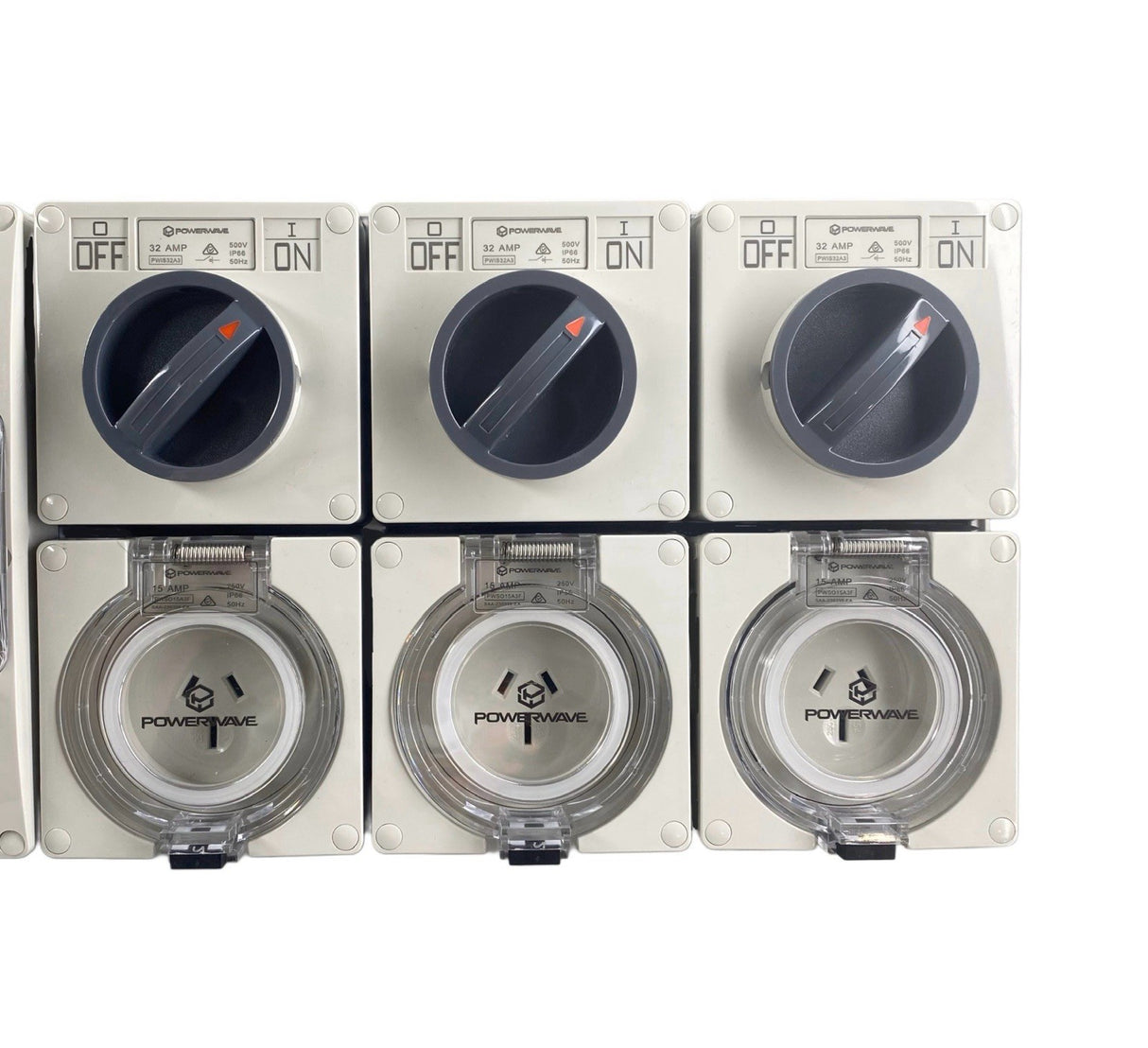

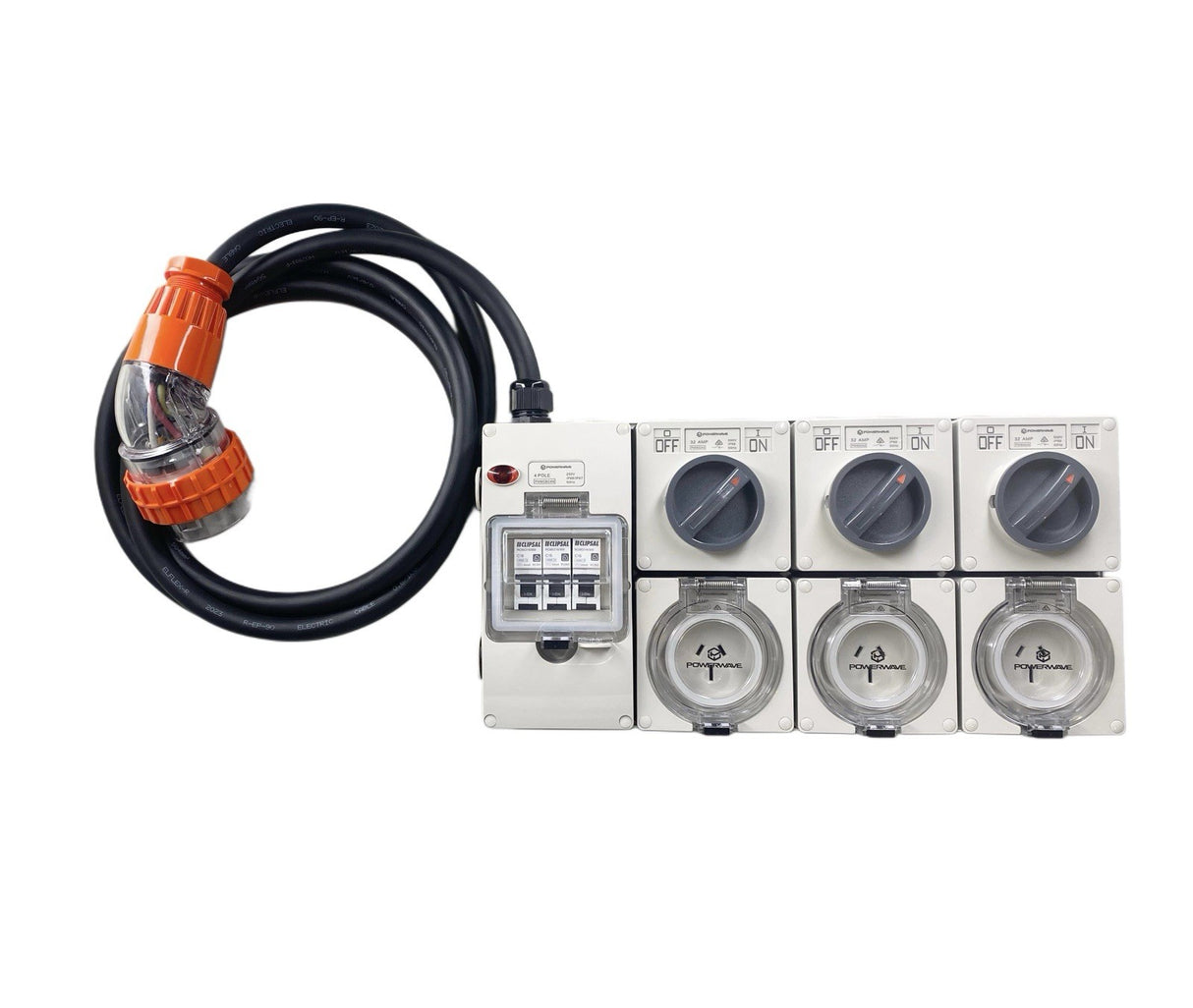

Power Board 5 Pin 20 Amp to 3 x 15 Amp Flat Pin RCBO Protected Outlets

This Board supplies 3 x 15 Amp 3 Pin Flat Single Phase 240 Volt Switched Outlets from a 2 Metre 5 Pin 20 Amp 3 Phase Supply.

2 metre lead HO7 Rubber Cable

Circuit Protected by Three Single Pole Clipsal 20 Amp RCBO 4.5ka

Mounted inside 8 Module Base

Dimensions of Base Unit 392 x 200 x 110mm

All GEN3 Industrial Switch Gear is IP66 Rated

All GEN3 plastics are PCA18 virgin grade (No regrind)

All GEN3 products use 316 Stainless Steel Springs and Mounting Screws.

All Brass internal components are greater than 85% copper.

All GEN3 products have Australian/NZ Approval Certificates.

All GEN3 products are interchangeable with other major brands.

GEN3 Operating Temperature range -25 °C to +70°C

The lead is made of HO7 Grade Rubber Flex which is sheathed in a Black Insulation that is Chemical/Oil Resistant and Flame Retardant

Conductors - Class 5 tinned copper according to AS/NZS 1125,IEC 60228

Insulation - Ethylene-propolene rubber (EPR) R-RP-90 90°C Conductor

Inner Sheath - EPDM Rubber Outer Jacket - Chlorinated Polyethylene, CPE rubber compound.

UV, Sunlight and weather resistant. Flame retardant to IEC 60332-1-2:2004,EN60332-1-2-2004.

Operating Temperature range -25°C to +90°C (mobile) -40°C to +90°C (fixed)

IP66 Rated Plug Socket and Base

Applications

o   Carnival and Ride operators

o   Live Music and Theatre

o   Lighting and Audio Power

o   Can be safely used with Diesel Generators

o  Construction site work including Welding

Additional Information

o  10A and 15A Plugs can both be plugged into 15AOutlets

Other Adapters

·        We have a wide range of Adapters and Leads available that can be custom built to your requirements

o  3 Phase to Single Phase

o  Single Phase to Single Phase

o  Single Phase and 3 Phase Industrial Extension Leads and Sockets

o  Testing and Tagging available prior to shipping(valid for 3 Months once shipped)

Please contact us with your requirements and we’ll be happy to help

All Manufacturing of Our Electrical Products are carried out by Licensed Electrical Workers under Resource Electrical Group REC 18269
